Name: Sealed Lead Acid Battery, 12V 9AH
SKU: 1706530

Product Details ＋

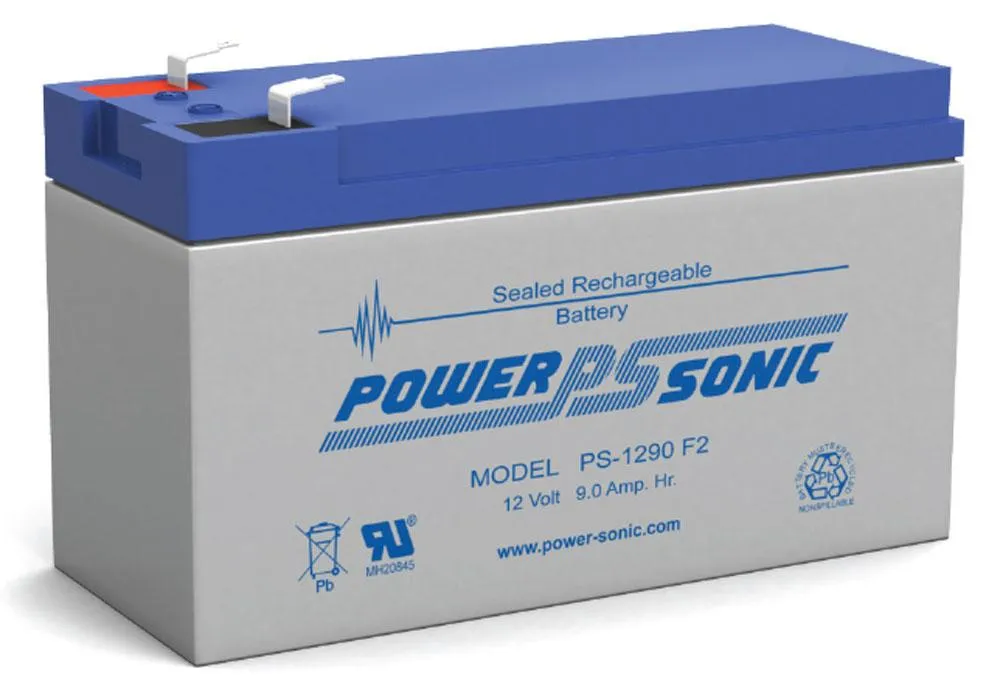

Powersonic Sealed Lead Acid Battery (12.0 Volts, 9.0ah)

Key Features:

Absorbent Glass Mat (AGM) technology for superior performance

Valve regulated, spill proof construction allows safe operation in any position

Power/volume ratio yielding unrivaled energy density

Rugged impact resistant ABS case and cover (UL94-HB)

Approved for transport by air. D.O.T., I.A.T.A., F.A.A. and C.A.B. certified

U.L. recognized under file number MH 20845

Performance Specifications:

Nominal Voltage: 12 volts (6 cells)

Nominal Capacity:
   20-hr.(450mA to 10.50 volts) ..... 9.00 AH
   10-hr.(810mA to 10.50 volts) ..... 8.10 AH
   5-hr.   (1.44A to 10.20 volts) ..... 7.20 AH
   1-hr.   (5.40A to 9.000 volts) ..... 5.40 AH
   15-min. (14.4A to 9.00 volts) ..... 3.60 AH

Approximate Weight: 6.00 lbs. (2.72 kg)

Energy Density (20-hr. rate): 1.92 W-h/in3 (116.94 W-h/l)

Specific Energy (20-hr. rate): 18.00 W-h/lb (39.68 W-h/kg)

Internal Resistance (approx.): 13 milliohms

Max Discharge Current (7 Min.): 27.0 amperes

Max Short-Duration Discharge Current (10 Sec.): 90.0 amperes

Shelf Life (% of nominal capacity at 68°F (20Â°C)
   1 Month ..... 97%
   3 Months ..... 91%
   6 Months ..... 83%

Operating Temperature Range:
Charge ......... -4°F (-20°C) to 122°F (50°C)
Discharge ..... -40°F (-40°C) to 140°F (60°C)

Case:....................... ABS Plastic

Power-Sonic Chargers: ...... PSC-12800A, 12800A

Dimensions:

Length: 5.95" (151) Width: 2.56" (65) Height: 3.70" (94) Height (Over Terminals): 3.86" (98)

Terminal/Connection Type:

Quick disconnect tabs, 0.250" x 0.032"- Mate with AMP. INCFASTON "250" series.

Charging:

Cycle Applications: Limit initial current to 2.7A. Charge until battery voltage (under charge) reaches 14.4 to 14.7 volts at 68° (20Â°C). Hold at 14.4 to 14.7 volts until current drops to under 90mA. Battery is fully charged under these conditions, and charger should be disconnected or switched to â€œfloat"voltage. â€œFloat"or â€œStand-By"Service: Hold battery across constant voltage source of 13.5 to 13.8 volts continuously. When held at this voltage, the battery will seek its own current level and maintain itself in a fully charged condition. Note: Due to the self-discharge characteristics of this type of battery, it is imperative that they be charged within 6 months of storage, otherwise permanent loss of capacity might occur as a result of sulfation

..[
